AHU & Metering Panels
AHU starter plus tenant metering, BMS-ready. Built in our Kolkata factory to IS 8623 / IEC 61439-2, with CPRI 6000A type-tested design references.
Where an HVAC panel runs the fan, an AHU metering panel accounts for what each tenant or floor actually drew, over Modbus to the building's energy management system. Getting the CT ratio and metering class right the first time avoids a billing dispute six months after handover.
What's inside.
- Fuse-less, Type-2 coordinated
- Multi-function meter per feeder (Schneider, Selec or L&T)
- Modbus RTU / TCP on RS-485 or Ethernet
- BMS with feeder-level energy monitoring
Why we built it this way.
- Meter per feeder for tenant billing or EnMS reporting
- VFD bypass wired in when the drive matters more than the driven load
- Local/remote and auto/manual selectors on the door
- Terminal blocks sized for site retrofits, not just the day-one BOQ

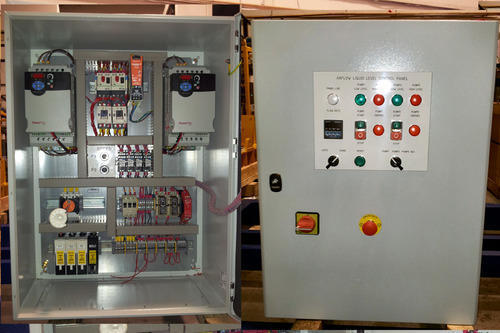

Real builds, real installs.
Answers before you ask.
What standard are AM Electricals AHU/Metering panels built to?
We build to IS 8623 (aligned with IEC 61439-2), with CPRI 6000A type-tested designs available and an ISO 9001 quality process throughout. Full type-test evidence is available on request.
Can you customise the AHU/Metering panel to a specific SLD?
Yes. Every non-standard job is engineered to your single-line diagram, with BOQ, GA and wiring drawings reviewed by our founder before build starts.
What is the typical lead time from PO?
Standard panels ship in 3 to 5 weeks. Custom builds are quoted with a firm delivery commitment. Same-week site visits across West Bengal, Jharkhand, Odisha and the Northeast.
Do you offer commissioning and FAT support?
Yes. FAT runs at our Kolkata factory before dispatch, and site commissioning support is available for orders across India.
Send us your spec.
Attach SLD, load list or a photo of the existing panel over WhatsApp. Reply within one business day.
