PCC Panels
Power Control Centre, up to 4000 A, IS 8623. Built in our Kolkata factory to IS 8623 / IEC 61439-2, with CPRI 6000A type-tested design references.
A PCC sits upstream of the MCC, taking the incoming supply and splitting it into outgoing feeders for distribution boards, large motors and the MCC itself. At this current rating a fault has to clear in cycles not seconds, so busbar bracing and breaker discrimination are checked against the full prospective short-circuit current, not just the panel's own rating.
What's inside.
- up to 4000 A
- 415 V, 3-phase, 4-wire
- IS 8623 / IEC 61439-2
- 65 kA for 1 second
- IP54 / IP55
- Single-front, Double-front
Why we built it this way.
- Load scheduling drops non-critical feeders first when EB or DG is overloaded
- CRCA sheet with powder coat, not painted MS. Bengal-climate rated
- Incoming and outgoing feeder layout planned around your operator, not our drawing template
- ACB or MCCB incomer to consultant spec

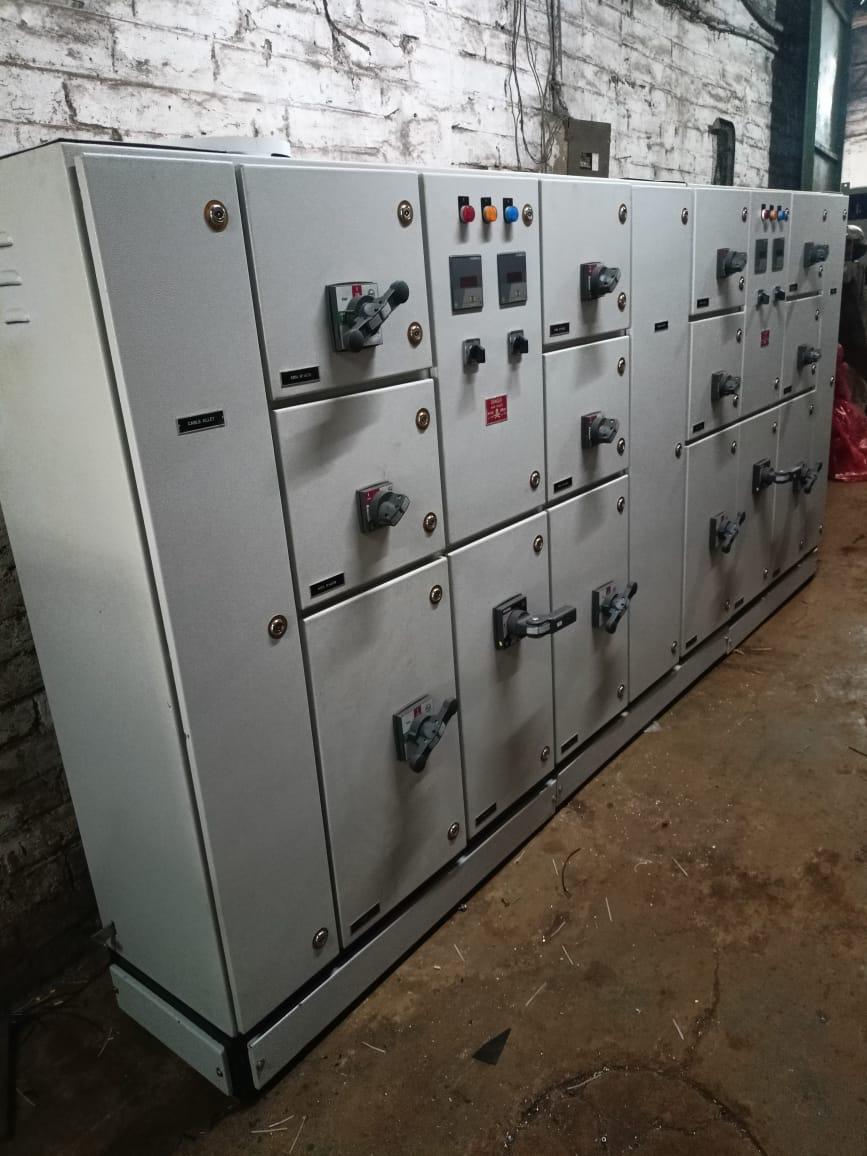

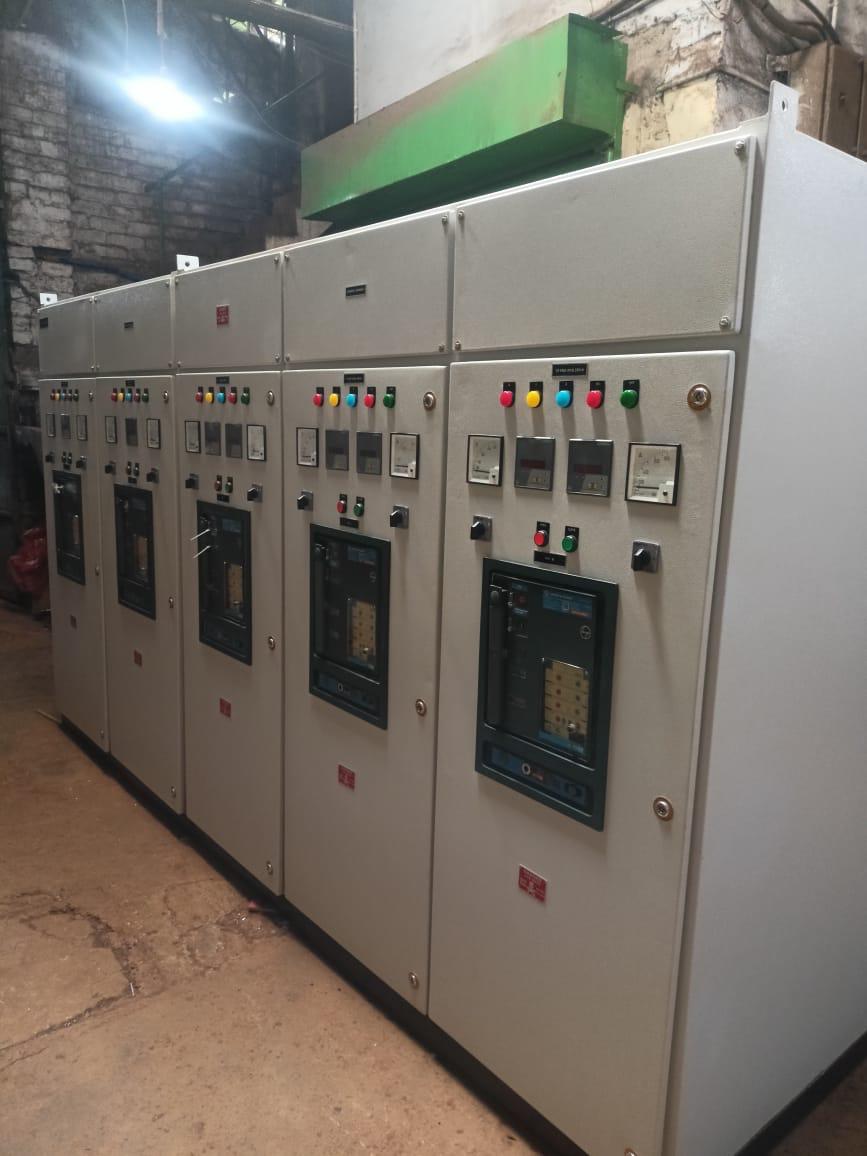

Real builds, real installs.
Answers before you ask.
What standard are AM Electricals PCC panels built to?
We build to IS 8623 (aligned with IEC 61439-2), with CPRI 6000A type-tested designs available and an ISO 9001 quality process throughout. Full type-test evidence is available on request.
Can you customise the PCC panel to a specific SLD?
Yes. Every non-standard job is engineered to your single-line diagram, with BOQ, GA and wiring drawings reviewed by our founder before build starts.
What is the typical lead time from PO?
Standard panels ship in 3 to 5 weeks. Custom builds are quoted with a firm delivery commitment. Same-week site visits across West Bengal, Jharkhand, Odisha and the Northeast.
Do you offer commissioning and FAT support?
Yes. FAT runs at our Kolkata factory before dispatch, and site commissioning support is available for orders across India.
Send us your spec.
Attach SLD, load list or a photo of the existing panel over WhatsApp. Reply within one business day.
